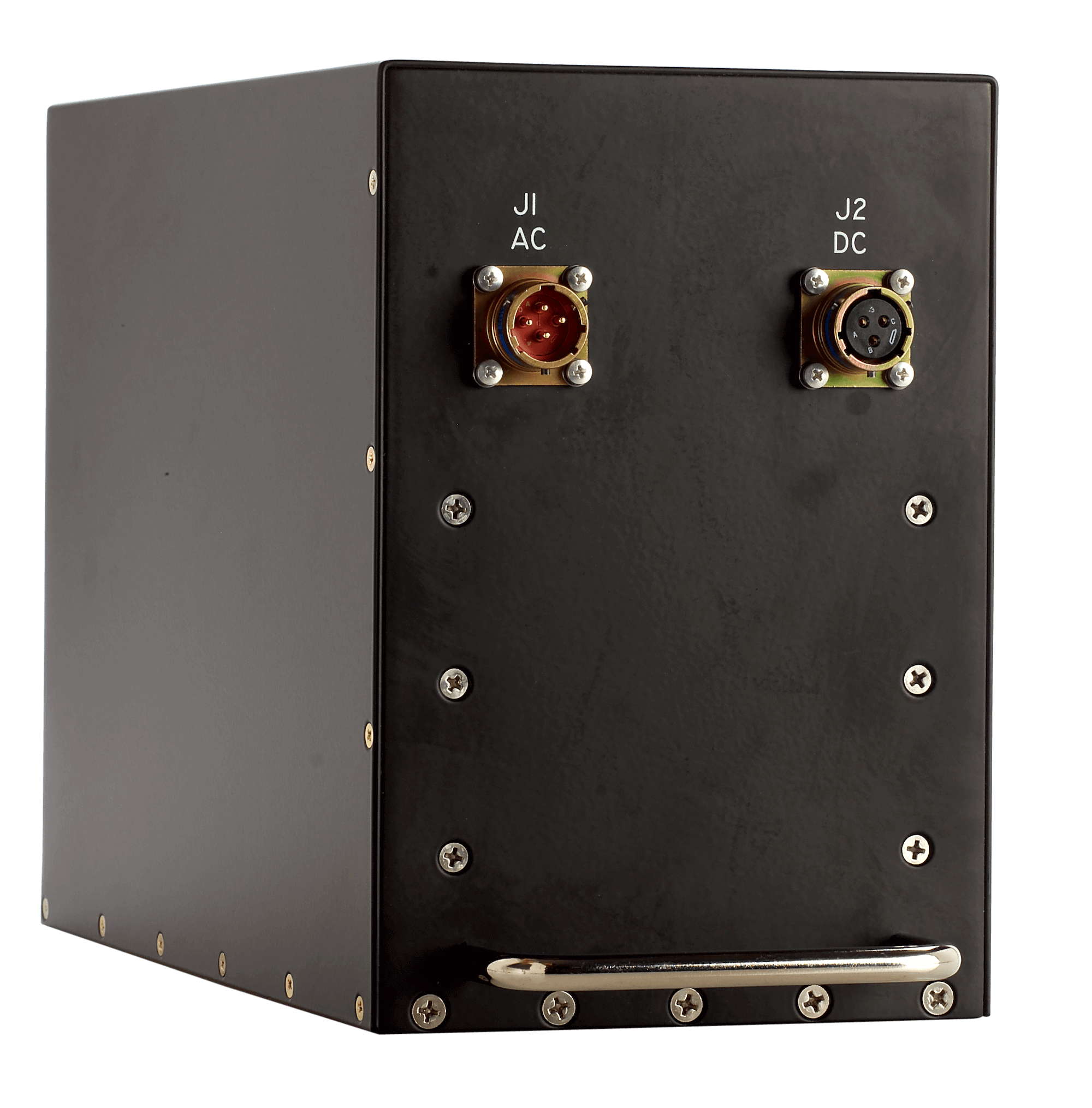

TRU Series

The TRU Series, AC-DC Power Supply line allows user to configure a unit based upon Off the Shelf sub-modules and options. It’s as easy as choosing your input voltage front end requirements, output voltage specifications, plus options, and Arnold Magnetics does the rest. We deliver a complete plug and play unit in a fraction of the time it takes for custom products!

  • Up to 2kW of output power
  • Wide input voltage & frequency range
  • 1 Phase & 3 Phase Wye or Delta AC input
  • EMI Filtering to Mil-Std-461
  • Low noise, maximum 3% THD
  • Transients to Mil-Std-704 & Mil-Std-1399
  • Mil-Std-810 Severe Environments
  • Over-Temperature Shutdown (Optional)
Product Datasheet

Summary Specifications

  • AC Input Voltage Ranges Contact factory for special needs.115VAC L-N/200VAC L-L, 3 Phase Wye, 50/60/400Hz 115VAC L-L, 3 Phase Delta, 50/60Hz
  • DC Output Voltage Ranges Contact factory for special needs.115VDC, 160VDC, 270VDC, 300VDC
  • Output Power TRU-101 Contact factory for special needs.950W (270VDC @ 3.5A, 57-63 / 375-425Hz output)
  • Options Contact factory for special needs.Mil-Std-461 EMI Filter, Mil-Std-704 & 1399 Transient Protection, Inrush Control, Low Noise Output Filter
  • Case Size TRU-101 Contact factory for special needs.8.40"H x 5.75"W x 11.75"D with wide variety of styles & mounting available
  • I/O Options TRU-101 Contact factory for special needs.D38999 Series (Standard); Studs / Bus Bar (Optional)
  • Operating Environments Contact factory for special needs.Mil-Std-810F ( See Data Sheet )
  • Operating Temperature-10C to +71C, baseplate (Conduction Cooled)
  • Storage Temperature-40C to +100C

Proven Off The Shelf Technology

  • Low Program Risk
  • Quick Delivery
  • Low Cost of Ownership
