LPBA Series

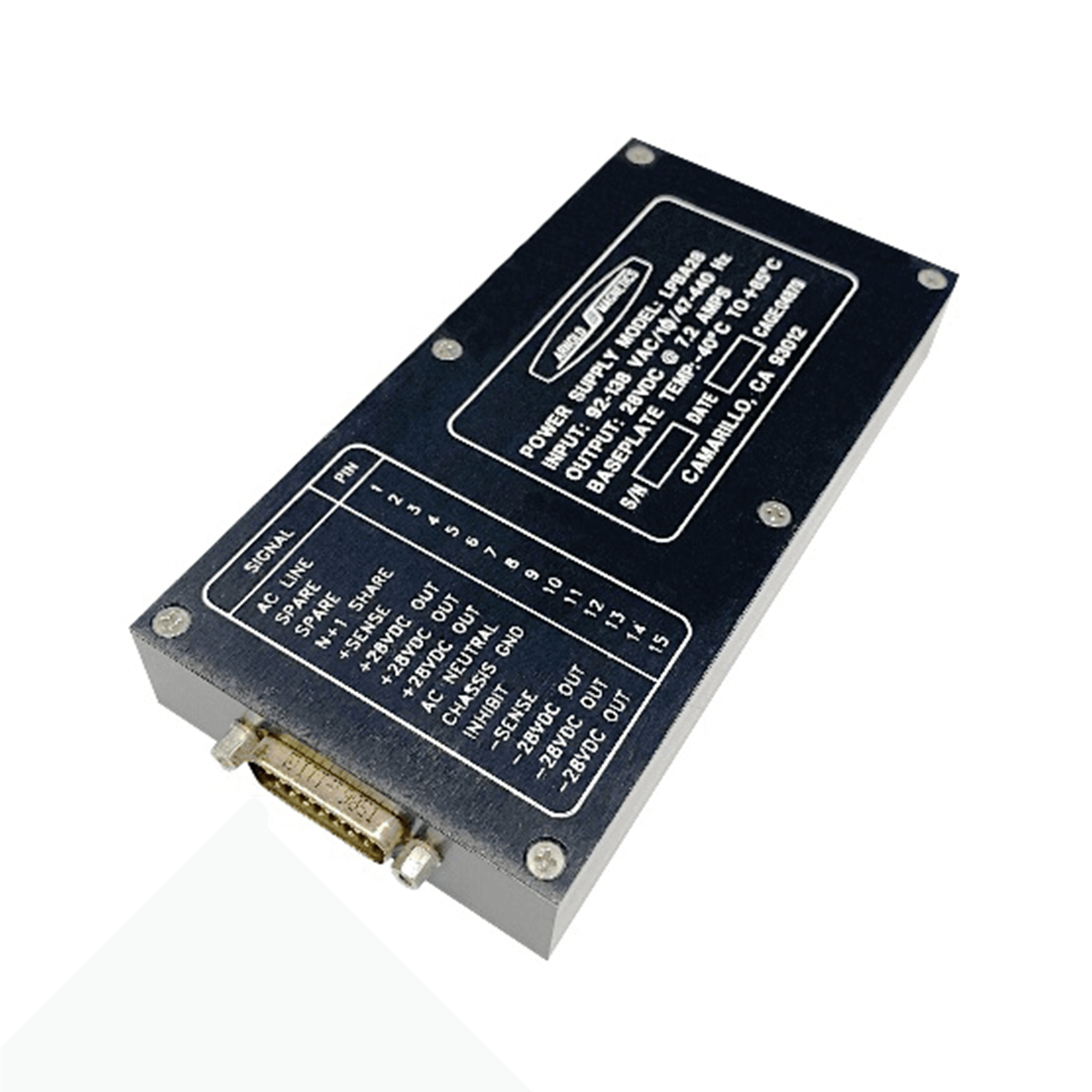

The LPBA Series, Low Profile Power Bus product line allows users to configure this single output power supply, based upon “Off the Shelf” components. It’s as easy as choosing your input voltage front end requirements, output voltage specification, any additional options, and Arnold Magnetics does the rest. We deliver a complete plug and play unit, in a fraction of the time it takes for custom products!

  • Up to 200W single output in 17.6 in³ case
  • Select single output voltage from 5-50VDC
  • Standard features include OVP, OCL, N+1 Current Share, Inhibit ON/OFF control
  • Remote Sense compensation up to 0.5V
  • Mil-Std-461 Input Filter (Standard)
  • Mil-Std-704 and 1399 Transients (Standard)
  • Mil-Std-810 Severe Environments
  • Mil-S-901 Shock and Mil-Std-167 Vibration
Product Datasheet

Summary Specifications

  • AC Input Voltage Ranges Contact factory for special needs.115VAC, Single Phase (std), 50/60Hz (std), 400Hz (opt) 230VAC, Single Phase (opt), 50/60Hz (opt), 400Hz (opt)
  • Output Voltage(s)Specify single output voltage from 15-50VDC range
  • Output Power – typicalUp to 200W
  • Standard Options Contact factory for special needs.Mil-Std-461 EMI Input Filter (50/60Hz), Mil-Std-704 and 1399 Transient Protection, Inrush Control, Inhibit On/Off Control, Thermal Shutdown, Hold-up Time 30mS, Active Power Factor Correction 0.98, Low Noise Output Filter
  • Case Size – typical0.96”H x 3.0”W x 6.0”L standard baseplate mounting
  • I/O Connector – typicalSingle D-Sub Connector – M24308/3-2 (DAMM15P)
  • Operating EnvironmentsMil-Std-810F ( See Data Sheet )
  • Operating Temperature-40°C to +85°C, Baseplate (Conduction Cooled)

Proven Off The Shelf Technology

  • Low Program Risk
  • Quick Delivery
  • Low Cost of Ownership
